FYH外球面軸承：SA201、SA201-8、SA202、SA202-10、SA203、SA204-12、SA204、SA205-14、SA205-15、SA205、SA205-16、SA206-18

下一個：日本FYH外球面軸承：UC214、UCX14、UC314、UC215、UCX15、UC315、UC216、UCX16、UC316、UC217、UCX17、 UC317、UC218、UCX18尺寸參數

產品詳情

產品評論(0)

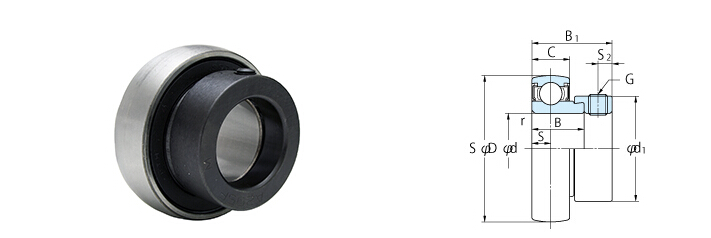

軸承公稱型號	軸徑	頂絲公稱型號	D 尺寸	B1 尺寸	C 尺寸
SA201	12 mm	M6×0.75	40 mm 1.575 in	28.5 mm 1.122 in	12 mm 0.472 in
SA201-8	1/2 in	1/4-28UNF	40 mm 1.575 in	28.5 mm 1.122 in	12 mm 0.472 in
SA202	15 mm	M6×0.75	40 mm 1.575 in	28.5 mm 1.122 in	12 mm 0.472 in
SA202-10	5/8 in	1/4-28UNF	40 mm 1.575 in	28.5 mm 1.122 in	12 mm 0.472 in
SA203	17 mm	M6×0.75	40 mm 1.575 in	28.5 mm 1.122 in	12 mm 0.472 in
SA204-12	3/4 in	1/4-28UNF	47 mm 1.850 in	29.5 mm 1.161 in	14 mm 0.551 in
SA204	20 mm	M6×0.75	47 mm 1.850 in	29.5 mm 1.161 in	14 mm 0.551 in
SA205-14	7/8 in	1/4-28UNF	52 mm 2.047 in	30.5 mm 1.201 in	15 mm 0.591 in
SA205-15	15/16 in	1/4-28UNF	52 mm 2.047 in	30.5 mm 1.201 in	15 mm 0.591 in
SA205	25 mm	M6×0.75	52 mm 2.047 in	30.5 mm 1.201 in	15 mm 0.591 in
SA205-16	1 in	1/4-28UNF	52 mm 2.047 in	30.5 mm 1.201 in	15 mm 0.591 in
SA206-18	1-1/8 in	5/16-24UNF	62 mm 2.441 in	35.7 mm 1.406 in	16 mm 0.630 in
SA206	30 mm	M8×1	62 mm 2.441 in	33.9 mm 1.335 in	16 mm 0.630 in
SA206-19	1-3/16 in	5/16-24UNF	62 mm 2.441 in	33.9 mm 1.335 in	16 mm 0.630 in
SA206-20	1-1/4 in	5/16-24UNF	62 mm 2.441 in	33.9 mm 1.335 in	16 mm 0.630 in
SA207-20	1-1/4 in	5/16-24UNF	72 mm 2.835 in	36.5 mm 1.437 in	17 mm 0.669 in
SA207-21	1-5/16 in	5/16-24UNF	72 mm 2.835 in	36.5 mm 1.437 in	17 mm 0.669 in
SA207-22	1-3/8 in	5/16-24UNF	72 mm 2.835 in	36.5 mm 1.437 in	17 mm 0.669 in
SA207	35 mm	M8×1	72 mm 2.835 in	36.5 mm 1.437 in	17 mm 0.669 in
SA207-23	1-7/16 in	5/16-24UNF	72 mm 2.835 in	36.5 mm 1.437 in	17 mm 0.669 in
SA208-24	1-1/2 in	5/16-24UNF	80 mm 3.150 in	40.5 mm 1.595 in	18 mm 0.709 in
SA208-25	1-9/16 in	5/16-24UNF	80 mm 3.150 in	40.5 mm 1.595 in	18 mm 0.709 in
SA208	40 mm	M8×1	80 mm 3.150 in	40.5 mm 1.595 in	18 mm 0.709 in

　　如需要同等規格其它品牌軸承：日本NSK帶座軸承，日本ASAHI帶座軸承，日本NTN帶座軸承；可以聯系我司工作人員咨詢，電話：0512-66505543 0512-87666709。

帶座外球面軸承類型介紹

　　帶座外球面球軸承由兩面帶密封的外球面球軸承和鑄造的（或鋼板沖壓的）軸承座組成。外球面球軸承的內部結構與深溝球軸承相同，但此種軸承的內圈寬于外圈.外圈具有截球形外表面，與軸承座的凹球面相配能自動調心。通常此種軸承的內孔與軸之間有間隙，用頂絲，偏心套或緊定套將軸承內圈固定在軸上，并隨軸一起轉動。帶座軸承結構緊湊，裝卸方便，密封完善，適用于簡單支承，常用于采礦.冶金.農業.化工.紡織.印染.輸送機械等。
