FYH帶座軸承菱形座軸承：UCFL201、UCFL202、UCFL203、UCFL204、UCFL205、UCFLX05、UCFL305、UCFL206、UCFLX06、UCFL306、UCFL207

上一個：韓國SAMICK直線軸承LM5UU、LM6UU、LM8UU、LM10UU、LM12UU、LM13UU、LM16UU、LM20UU、LM25UU、LM30UU、LM35UU、LM40UU等軸承尺寸

下一個： FYH方形帶座軸承:UKF205、UKFX05、UKF305、UKF206、UKFX06、UKF306、UKF207、UKFX07、UKF307、UKF208、 UKFX08、UKF308尺寸參數表

產品詳情

產品評論(0)

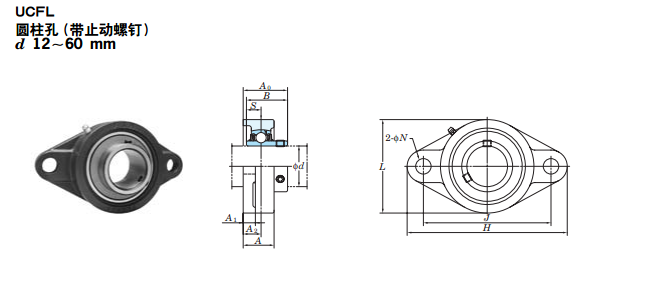

組件型號	軸承座型號	軸承公稱型號	軸徑	H 尺寸	L 尺寸	J 尺寸
UCFL201	FL204	UC201	12 mm	113 mm 4-7/16 in	60 mm 2-3/8 in	90 mm 3-35/64 in
UCFL201-8	FL204	UC201-8	1/2 in	113 mm 4-7/16 in	60 mm 2-3/8 in	90 mm 3-35/64 in
UCFL202	FL204	UC202	15 mm	113 mm 4-7/16 in	60 mm 2-3/8 in	90 mm 3-35/64 in
UCFL202-10	FL204	UC202-10	5/8 in	113 mm 4-7/16 in	60 mm 2-3/8 in	90 mm 3-35/64 in
UCFL203	FL204	UC203	17 mm	113 mm 4-7/16 in	60 mm 2-3/8 in	90 mm 3-35/64 in
UCFL204-12	FL204	UC204-12	3/4 in	113 mm 4-7/16 in	60 mm 2-3/8 in	90 mm 3-35/64 in
UCFL204	FL204	UC204	20 mm	113 mm 4-7/16 in	60 mm 2-3/8 in	90 mm 3-35/64 in
UCFL205-14	FL205	UC205-14	7/8 in	130 mm 5-1/8 in	68 mm 2-11/16 in	99 mm 3-57/64 in
UCFL205-15	FL205	UC205-15	15/16 in	130 mm 5-1/8 in	68 mm 2-11/16 in	99 mm 3-57/64 in
UCFL205	FL205	UC205	25 mm	130 mm 5-1/8 in	68 mm 2-11/16 in	99 mm 3-57/64 in
UCFL205-16	FL205	UC205-16	1 in	130 mm 5-1/8 in	68 mm 2-11/16 in	99 mm 3-57/64 in
UCFLX05	FLX05	UCX05	25 mm	141 mm 5-9/16 in	83 mm 3-9/32 in	117 mm 4-39/64 in
UCFLX05-16	FLX05	UCX05-16	1 in	141 mm 5-9/16 in	83 mm 3-9/32 in	117 mm 4-39/64 in
UCFL305	FL305	UC305	25 mm	150 mm 5-29/32 in	80 mm 3-5/32 in	113 mm 4-29/64 in
UCFL305-16	FL305	UC305-16	1 in	150 mm 5-29/32 in	80 mm 3-5/32 in	113 mm 4-29/64 in
UCFL206-18	FL206	UC206-18	1-1/8 in	148 mm 5-13/16 in	80 mm 3-5/32 in	117 mm 4-39/64 in
UCFL206	FL206	UC206	30 mm	148 mm 5-13/16 in	80 mm 3-5/32 in	117 mm 4-39/64 in
UCFL206-19	FL206	UC206-19	1-3/16 in	148 mm 5-13/16 in	80 mm 3-5/32 in	117 mm 4-39/64 in
UCFL206-20	FL206	UC206-20	1-1/4 in	148 mm 5-13/16 in	80 mm 3-5/32 in	117 mm 4-39/64 in
UCFLX06	FLX06	UCX06	30 mm	156 mm 6-5/32 in	95 mm 3-3/4 in	130 mm 5-1/8 in

組件型號	軸承座型號	軸承公稱型號	軸徑	H 尺寸	L 尺寸	J 尺寸
UCFLX06-19	FLX06	UCX06-19	1-3/16 in	156 mm 6-5/32 in	95 mm 3-3/4 in	130 mm 5-1/8 in
UCFLX06-20	FLX06	UCX06-20	1-1/4 in	156 mm 6-5/32 in	95 mm 3-3/4 in	130 mm 5-1/8 in
UCFL306	FL306	UC306	30 mm	180 mm 7-3/32 in	90 mm 3-17/32 in	134 mm 5-9/32 in
UCFL207-20	FL207	UC207-20	1-1/4 in	161 mm 6-11/32 in	90 mm 3-17/32 in	130 mm 5-1/8 in
UCFL207-21	FL207	UC207-21	1-5/16 in	161 mm 6-11/32 in	90 mm 3-17/32 in	130 mm 5-1/8 in
UCFL207-22	FL207	UC207-22	1-3/8 in	161 mm 6-11/32 in	90 mm 3-17/32 in	130 mm 5-1/8 in
UCFL207	FL207	UC207	35 mm	161 mm 6-11/32 in	90 mm 3-17/32 in	130 mm 5-1/8 in
UCFL207-23	FL207	UC207-23	1-7/16 in	161 mm 6-11/32 in	90 mm 3-17/32 in	130 mm 5-1/8 in
UCFLX07-22	FLX07	UCX07-22	1-3/8 in	171 mm 6-23/32 in	105 mm 4-1/8 in	144 mm 5-43/64 in
UCFLX07	FLX07	UCX07	35 mm	171 mm 6-23/32 in	105 mm 4-1/8 in	144 mm 5-43/64 in
UCFLX07-23	FLX07	UCX07-23	1-7/16 in	171 mm 6-23/32 in	105 mm 4-1/8 in	144 mm 5-43/64 in
UCFL307	FL307	UC307	35 mm	185 mm 7-9/32 in	100 mm 3-15/16 in	141 mm 5-35/64 in
UCFL208-24	FL208	UC208-24	1-1/2 in	175 mm 6-7/8 in	100 mm 3-15/16 in	144 mm 5-43/64 in
UCFL208-25	FL208	UC208-25	1-9/16 in	175 mm 6-7/8 in	100 mm 3-15/16 in	144 mm 5-43/64 in
UCFL208	FL208	UC208	40 mm	175 mm 6-7/8 in	100 mm 3-15/16 in	144 mm 5-43/64 in
UCFLX08-24	FLX08	UCX08-24	1-1/2 in	179 mm 7-1/16 in	111 mm 4-3/8 in	148 mm 5-53/64 in
UCFLX08	FLX08	UCX08	40 mm	179 mm 7-1/16 in	111 mm 4-3/8 in	148 mm 5-53/64 in
UCFL308-24	FL308	UC308-24	1-1/2 in	200 mm 7-7/8 in	112 mm 4-13/32 in	158 mm 6-7/32 in
UCFL308	FL308	UC308	40 mm	200 mm 7-7/8 in	112 mm 4-13/32 in	158 mm 6-7/32 in
UCFL209-26	FL209	UC209-26	1-5/8 in	188 mm 7-13/32 in	108 mm 4-1/4 in	148 mm 5-53/64 in

組件型號	軸承座型號	軸承公稱型號	軸徑	H 尺寸	L 尺寸	J 尺寸
UCFL209-27	FL209	UC209-27	1-11/16 in	188 mm 7-13/32 in	108 mm 4-1/4 in	148 mm 5-53/64 in
UCFL209-28	FL209	UC209-28	1-3/4 in	188 mm 7-13/32 in	108 mm 4-1/4 in	148 mm 5-53/64 in
UCFL209	FL209	UC209	45 mm	188 mm 7-13/32 in	108 mm 4-1/4 in	148 mm 5-53/64 in
UCFLX09-28	FLX09	UCX09-28	1-3/4 in	189 mm 7-7/16 in	116 mm 4-9/16 in	157 mm 6-3/16 in
UCFLX09	FLX09	UCX09	45 mm	189 mm 7-7/16 in	116 mm 4-9/16 in	157 mm 6-3/16 in
UCFL309-28	FL309	UC309-28	1-3/4 in	230 mm 9-1/16 in	125 mm 4-29/32 in	177 mm 6-31/32 in
UCFL309	FL309	UC309	45 mm	230 mm 9-1/16 in	125 mm 4-29/32 in	177 mm 6-31/32 in
UCFL210-30	FL210	UC210-30	1-7/8 in	197 mm 7-3/4 in	115 mm 4-17/32 in	157 mm 6-3/16 in
UCFL210-31	FL210	UC210-31	1-15/16 in	197 mm 7-3/4 in	115 mm 4-17/32 in	157 mm 6-3/16 in
UCFL210	FL210	UC210	50 mm	197 mm 7-3/4 in	115 mm 4-17/32 in	157 mm 6-3/16 in
UCFL210-32	FL210	UC210-32	2 in	197 mm 7-3/4 in	115 mm 4-17/32 in	157 mm 6-3/16 in
UCFLX10-31	FLX10	UCX10-31	1-15/16 in	216 mm 8-1/2 in	133 mm 5-1/4 in	184 mm 7-1/4 in
UCFLX10	FLX10	UCX10	50 mm	216 mm 8-1/2 in	133 mm 5-1/4 in	184 mm 7-1/4 in
UCFLX10-32	FLX10	UCX10-32	2 in	216 mm 8-1/2 in	133 mm 5-1/4 in	184 mm 7-1/4 in
UCFL310	FL310	UC310	50 mm	240 mm 9-7/16 in	140 mm 5-1/2 in	187 mm 7-23/64 in
UCFL211-32	FL211	UC211-32	2 in	224 mm 8-13/16 in	130 mm 5-1/8 in	184 mm 7-1/4 in
UCFL211-34	FL211	UC211-34	2-1/8 in	224 mm 8-13/16 in	130 mm 5-1/8 in	184 mm 7-1/4 in
UCFL211	FL211	UC211	55 mm	224 mm 8-13/16 in	130 mm 5-1/8 in	184 mm 7-1/4 in
UCFL211-35	FL211	UC211-35	2-3/16 in	224 mm 8-13/16 in	130 mm 5-1/8 in	184 mm 7-1/4 in
UCFL311-32	FL311	UC311-32	2 in	250 mm 9-27/32 in	150 mm 5-29/32 in	198 mm 7-51/64 in

　　如需要同等規格其它品牌軸承：日本NSK帶座軸承，日本ASAHI帶座軸承，日本NTN帶座軸承；可以聯系我司工作人員咨詢，電話：0512-66505543 0512-87666709。

帶座外球面軸承類型介紹

　　帶座外球面球軸承由兩面帶密封的外球面球軸承和鑄造的（或鋼板沖壓的）軸承座組成。外球面球軸承的內部結構與深溝球軸承相同，但此種軸承的內圈寬于外圈.外圈具有截球形外表面，與軸承座的凹球面相配能自動調心。通常此種軸承的內孔與軸之間有間隙，用頂絲，偏心套或緊定套將軸承內圈固定在軸上，并隨軸一起轉動。帶座軸承結構緊湊，裝卸方便，密封完善，適用于簡單支承，常用于采礦.冶金.農業.化工.紡織.印染.輸送機械等。
