FYH圓柱孔帶偏心套外球面軸承-NA201、NA202、NA203、NA204、NA205、NA206、NA207、NA208、NA209、NA210、NA211、NA212、NA213軸承參數

上一個：日本FYH軸承ER型和RB型圓柱孔：ER201、ER202、ER203、ER204、ER205、ER206、ER207、ER208、ER209、ER210、ER211、ER212、RB201等參數

下一個：日本FYH外球面軸承:UK205、UKX05、UK305、UK206、UKX06、UK306、UK207、UKX07、UK307、UK208、 UKX08、UK308、UK209、UKX09、UK30

產品詳情

產品評論(0)

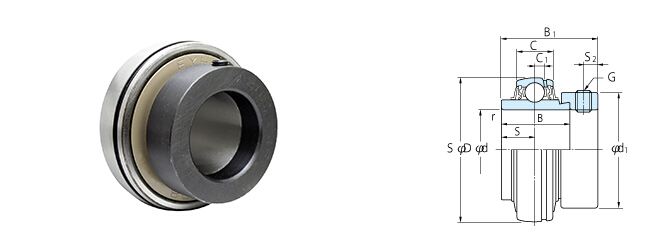

軸承公稱型號	軸徑	頂絲公稱型號	D 尺寸	B 尺寸	C 尺寸
NA201	12 mm	M6×0.75	47 mm 1.850 in	34.2 mm 1.346 in	43.7 mm 1.720 in
NA201-8	1/2 in	1/4-28UNF	47 mm 1.850 in	34.2 mm 1.346 in	43.7 mm 1.720 in
NA202	15 mm	M6×0.75	47 mm 1.850 in	34.2 mm 1.346 in	43.7 mm 1.720 in
NA202-10	5/8 in	1/4-28UNF	47 mm 1.850 in	34.2 mm 1.346 in	43.7 mm 1.720 in
NA203	17 mm	M6×0.75	47 mm 1.850 in	34.2 mm 1.346 in	43.7 mm 1.720 in
NA204-12	3/4 in	1/4-28UNF	47 mm 1.850 in	34.2 mm 1.346 in	43.7 mm 1.720 in
NA204	20 mm	M6×0.75	47 mm 1.850 in	34.2 mm 1.346 in	43.7 mm 1.720 in
NA205-14	7/8 in	1/4-28UNF	52 mm 2.047 in	34.9 mm 1.374 in	44.4 mm 1.748 in
NA205-15	15/16 in	1/4-28UNF	52 mm 2.047 in	34.9 mm 1.374 in	44.4 mm 1.748 in
NA205	25 mm	M6×0.75	52 mm 2.047 in	34.9 mm 1.374 in	44.4 mm 1.748 in
NA205-16	1 in	1/4-28UNF	52 mm 2.047 in	22 mm 0.866 in	33.9 mm 1.335 in
NA206-18	1-1/8 in	5/16-24UNF	62 mm 2.441 in	22 mm 0.866 in	33.9 mm 1.335 in
NA206	30 mm	M8×1	62 mm 2.441 in	36.5 mm 1.437 in	48.4 mm 1.906 in
NA206-19	1-3/16 in	5/16-24UNF	62 mm 2.441 in	36.5 mm 1.437 in	48.4 mm 1.906 in
NA206-20	1-1/4 in	5/16-24UNF	62 mm 2.441 in	36.5 mm 1.437 in	48.4 mm 1.906 in
NA207-20	1-1/4 in	5/16-24UNF	72 mm 2.835 in	37.6 mm 1.480 in	51.1 mm 2.012 in
NA207-21	1-5/16 in	5/16-24UNF	72 mm 2.835 in	37.6 mm 1.480 in	51.1 mm 2.012 in
NA207-22	3-3/8 in	5/16-24UNF	72 mm 2.835 in	37.6 mm 1.480 in	51.1 mm 2.012 in
NA207	35 mm	M8×1	72 mm 2.835 in	37.6 mm 1.480 in	51.1 mm 2.012 in
NA207-23	1-7/16 in	5/16-24UNF	72 mm 2.835 in	37.6 mm 1.480 in	51.1 mm 2.012 in
NA208-24	1-1/2 in	5/16-24UNF	80 mm 3.150 in	42.8 mm 1.685 in	56.3 mm 2.217 in
NA208-25	1-9/16 in	5/16-24UNF	80 mm 3.150 in	42.8 mm 1.685 in	56.3 mm 2.217 in
NA208	40 mm	M8×1	80 mm 3.150 in	42.8 mm 1.685 in	56.3 mm 2.217 in
NA209-26	1-5/8 in	5/16-24UNF	85 mm 3.346 in	42.8 mm 1.685 in	56.3 mm 2.217 in
NA209-27	1-11/16 in	5/16-24UNF	85 mm 3.346 in	42.8 mm 1.685 in	56.3 mm 2.217 in
NA209-28	1-3/4 in	5/16-24UNF	85 mm 3.346 in	42.8 mm 1.685 in	56.3 mm 2.217 in
NA209	45 mm	M8×1	85 mm 3.346 in	42.8 mm 1.685 in	56.3 mm 2.217 in
NA210-30	1-7/8 in	5/16-24UNF	90 mm 3.543 in	49.2 mm 1.937 in	62.7 mm 2.469 in
NA210-31	1-15/16 in	5/16-24UNF	90 mm 3.543 in	49.2 mm 1.937 in	62.7 mm 2.469 in
NA210	50 mm	M8×1	90 mm 3.543 in	49.2 mm 1.937 in	62.7 mm 2.469 in
NA210-32	2 in	5/16-24UNF	90 mm 3.543 in	49.2 mm 1.937 in	62.7 mm 2.469 in
NA211-32	2 in	3/8-24UNF	100 mm 3.937 in	55.5 mm 2.185 in	71.4 mm 2.811 in
NA211-34	2-1/8 in	3/8-24UNF	100 mm 3.937 in	55.5 mm 2.185 in	71.4 mm 2.811 in
NA211	55 mm	M10×1.25	100 mm 3.937 in	55.5 mm 2.185 in	71.4 mm 2.811 in
NA211-35	2-3/16 in	3/8-24UNF	100 mm 3.937 in	55.5 mm 2.185 in	71.4 mm 2.811 in
NA212-36	2-1/4 in	3/8-24UNF	110 mm 4.331 in	61.9 mm 2.437 in	77.8 mm 3.063 in
NA212	60 mm	M10×1.25	110 mm 4.331 in	61.9 mm 2.437 in	77.8 mm 3.063 in
NA212-38	2-3/8 in	3/8-24UNF	110 mm 4.331 in	61.9 mm 2.437 in	77.8 mm 3.063 in
NA212-39	2-7/16 in	3/8-24UNF	110 mm 4.331 in	61.9 mm 2.437 in	77.8 mm 3.063 in
NA213-40	2-1/2 in	3/8-24UNF	120 mm 4.724 in	68.2 mm 2.685 in	85.7 mm 3.374 in
NA213	65 mm	M10×1.25	120 mm 4.724 in	68.2 mm 2.685 in	85.7 mm 3.374 in
NA214-44	2-3/4 in	3/8-24UNF	125 mm 4.921 in	68.2 mm 2.685 in	85.7 mm 3.374 in
NA214	70 mm	M10×1.25	125 mm 4.921 in	68.2 mm 2.685 in	85.7 mm 3.374 in
NA215-47	2-15/16 in	3/8-24UNF	130 mm 5.118 in	74.6 mm 2.937 in	92.1 mm 3.626 in
NA215	75 mm	M10×1.25	130 mm 5.118 in	74.6 mm 2.937 in	92.1 mm 3.626 in
NA215-48	3 in	3/8-24UNF	130 mm 5.118 in	74.6 mm 2.937 in	92.1 mm 3.626 in

　　如需要以上同等規格其它品牌軸承：日本NSK帶座軸承，日本ASAHI帶座軸承，日本NTN帶座軸承；可以聯系我司工作人員咨詢，電話：0512-66505543 0512-87666709。

帶座外球面軸承類型介紹

　　帶座外球面球軸承由兩面帶密封的外球面球軸承和鑄造的（或鋼板沖壓的）軸承座組成。外球面球軸承的內部結構與深溝球軸承相同，但此種軸承的內圈寬于外圈.外圈具有截球形外表面，與軸承座的凹球面相配能自動調心。通常此種軸承的內孔與軸之間有間隙，用頂絲，偏心套或緊定套將軸承內圈固定在軸上，并隨軸一起轉動。帶座軸承結構緊湊，裝卸方便，密封完善，適用于簡單支承，常用于采礦.冶金.農業.化工.紡織.印染.輸送機械等。
