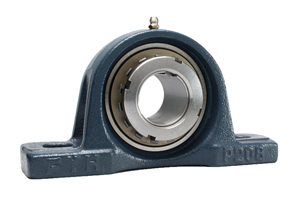

FYH帶座軸承:UKP205、UKPX05、UKP305、UKP206、UKPX06、UKP306、UKP207、UKPX07、UKP307、UKP208、 UKPX08、UKP308、UKP209

上一個： FYH軸承F座:UCF202、UCF203、UCF204、UCF205、UCFX05、UCF305、UCF206、UCFX06、UCF306、UCF207、UCFX07、UCF307、UCF208

下一個： FYH帶P座軸承：UCP202、UCP203、UCP204、UCP205、UCPX05、UCP305、UCP206、UCPX06、UCP306、UCP207、UCPX07、UCP307、UCP208

產品詳情

產品評論(0)

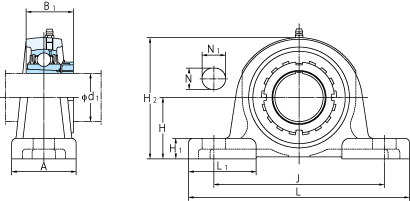

組件型號	軸承座型號	軸承公稱型號	軸徑	H 尺寸	L 尺寸	J 尺寸
UKP205+HE305X	P205	UK205	3/4 in	36.5 mm 1-7/16 in	140 mm 5-1/2 in	105 mm 4-1/8 in
UKP205+H305X	P205	UK205	20 mm	36.5 mm 1-7/16 in	140 mm 5-1/2 in	105 mm 4-1/8 in
UKPX05+HE2305X	PX05	UKX05	3/4 in	44.4 mm 1-3/4 in	159 mm 6-1/4 in	119 mm 4-11/16 in
UKPX05+H2305X	PX05	UKX05	20 mm	44.4 mm 1-3/4 in	159 mm 6-1/4 in	119 mm 4-11/16 in
UKP305+HE2305X	P305	UK305	3/4 in	45 mm 1-49/64 in	175 mm 6-7/8 in	132 mm 5-3/16 in
UKP305+H2305X	P305	UK305	20 mm	45 mm 1-49/64 in	175 mm 6-7/8 in	132 mm 5-3/16 in
UKP206+H306X	P206	UK206	25 mm	42.9 mm 1-11/16 in	165 mm 6-1/2 in	121 mm 4-3/4 in
UKP206+HE306X	P206	UK206	1 in	42.9 mm 1-11/16 in	165 mm 6-1/2 in	121 mm 4-3/4 in
UKPX06+H2306X	PX06	UKX06	25 mm	47.6 mm 1-7/8 in	175 mm 6-7/8 in	127 mm 5 in
UKPX06+HE2306X	PX06	UKX06	1 in	47.6 mm 1-7/8 in	175 mm 6-7/8 in	127 mm 5 in
UKP306+H2306X	P306	UK306	25 mm	50 mm 1-31/32 in	180 mm 7-3/32 in	140 mm 5-1/2 in
UKP306+HE2306X	P306	UK306	1 in	50 mm 1-31/32 in	180 mm 7-3/32 in	140 mm 5-1/2 in
UKP207+HS307X	P207	UK207	1-1/8 in	47.6 mm 1-7/8 in	167 mm 6-9/16 in	127 mm 5 in
UKP207+H307X	P207	UK207	30 mm	47.6 mm 1-7/8 in	167 mm 6-9/16 in	127 mm 5 in
UKPX07+HS2307X	PX07	UKX07	1-1/8 in	54 mm 2-1/8 in	203 mm 8 in	144 mm 5-21/32 in
UKPX07+H2307X	PX07	UKX07	30 mm	54 mm 2-1/8 in	203 mm 8 in	144 mm 5-21/32 in
UKP307+HS2307X	P307	UK307	1-1/8 in	56 mm 2-13/64 in	210 mm 8-9/32 in	160 mm 6-5/16 in
UKP307+H2307X	P307	UK307	30 mm	56 mm 2-13/64 in	210 mm 8-9/32 in	160 mm 6-5/16 in
UKP208+HE308X	P208	UK208	1-1/4 in	49.2 mm 1-15/16 in	184 mm 7-1/4 in	137 mm 5-13/32 in
UKP208+HS308X	P208	UK208	1-3/8 in	49.2 mm 1-15/16 in	184 mm 7-1/4 in	137 mm 5-13/32 in
組件型號	軸承座型號	軸承公稱型號	軸徑	H 尺寸	L 尺寸	J 尺寸
UKP208+H308X	P208	UK208	35 mm	49.2 mm 1-15/16 in	184 mm 7-1/4 in	137 mm 5-13/32 in
UKPX08+HE2308X	PX08	UKX08	1-1/4 in	58.7 mm 2-5/16 in	222 mm 8-3/4 in	156 mm 6-5/32 in
UKPX08+HS2308X	PX08	UKX08	1-3/8 in	58.7 mm 2-5/16 in	222 mm 8-3/4 in	156 mm 6-5/32 in
UKPX08+H2308X	PX08	UKX08	35 mm	58.7 mm 2-5/16 in	222 mm 8-3/4 in	156 mm 6-5/32 in
UKP308+HE2308X	P308	UK308	1-1/4 in	60 mm 2-23/64 in	220 mm 8-21/32 in	170 mm 6-11/16 in
UKP308+HS2308X	P308	UK308	1-3/8 in	60 mm 2-23/64 in	220 mm 8-21/32 in	170 mm 6-11/16 in
UKP308+H2308X	P308	UK308	35 mm	60 mm 2-23/64 in	220 mm 8-21/32 in	170 mm 6-11/16 in
UKP209+HE309X	P209	UK209	1-1/2 in	54 mm 2-1/8 in	190 mm 7-15/32 in	146 mm 5-3/4 in
UKP209+H309X	P209	UK209	40 mm	54 mm 2-1/8 in	190 mm 7-15/32 in	146 mm 5-3/4 in
UKPX09+HE2309X	PX09	UKX09	1-1/2 in	58.7 mm 2-5/16 in	222 mm 8-3/4 in	156 mm 6-5/32 in
UKPX09+H2309X	PX09	UKX09	40 mm	58.7 mm 2-5/16 in	222 mm 8-3/4 in	156 mm 6-5/32 in
UKP309+HE2309X	P309	UK309	1-1/2 in	67 mm 2-41/64 in	245 mm 9-21/32 in	190 mm 7-15/32 in
UKP309+H2309X	P309	UK309	40 mm	67 mm 2-41/64 in	245 mm 9-21/32 in	190 mm 7-15/32 in
UKP210+HE310X	P210	UK210	1-3/4 in	57.2 mm 2-1/4 in	206 mm 8-1/8 in	159 mm 6-1/4 in
UKP210+H310X	P210	UK210	45 mm	57.2 mm 2-1/4 in	206 mm 8-1/8 in	159 mm 6-1/4 in
UKPX10+HE2310X	PX10	UKX10	1-3/4 in	63.5 mm 2-1/2 in	241 mm 9-1/2 in	171 mm 6-23/32 in
UKPX10+H2310X	PX10	UKX10	45 mm	63.5 mm 2-1/2 in	241 mm 9-1/2 in	171 mm 6-23/32 in
UKP310+HE2310X	P310	UK310	1-3/4 in	75 mm 2-61/64 in	275 mm 10-13/16 in	212 mm 8-11/32 in
UKP310+H2310X	P310	UK310	45 mm	75 mm 2-61/64 in	275 mm 10-13/16 in	212 mm 8-11/32 in
UKP211+HS311X	P211	UK211	1-7/8 in	63.5 mm 2-1/2 in	219 mm 8-5/8 in	171 mm 6-23/32 in
組件型號	軸承座型號	軸承公稱型號	軸徑	H 尺寸	L 尺寸	J 尺寸
UKP211+H311X	P211	UK211	50 mm	63.5 mm 2-1/2 in	219 mm 8-5/8 in	171 mm 6-23/32 in
UKP211+HE311X	P211	UK211	2 in	63.5 mm 2-1/2 in	219 mm 8-5/8 in	171 mm 6-23/32 in
UKPX11+HE2311X	PX11	UKX11	2 in	69.8 mm 2-3/4 in	260 mm 10-1/4 in	184 mm 7-1/4 in
UKPX11+H2311X	PX11	UKX11	50 mm	69.8 mm 2-3/4 in	260 mm 10-1/4 in	184 mm 7-1/4 in
UKPX11+HS2311X	PX11	UKX11	1-7/8 in	69.8 mm 2-3/4 in	260 mm 10-1/4 in	184 mm 7-1/4 in
UKP311+HE2311X	P311	UK311	2 in	80 mm 3-5/32 in	310 mm 12-7/32 in	236 mm 9-9/32 in
UKP311+H2311X	P311	UK311	50 mm	80 mm 3-5/32 in	310 mm 12-7/32 in	236 mm 9-9/32 in
UKP311+HS2311X	P311	UK311	1-7/8 in	80 mm 3-5/32 in	310 mm 12-7/32 in	236 mm 9-9/32 in
UKP212+HS312X	P212	UK212	2-1/8 in	69.8 mm 2-3/4 in	241 mm 9-1/2 in	184 mm 7-1/4 in
UKP212+H312X	P212	UK212	55 mm	69.8 mm 2-3/4 in	241 mm 9-1/2 in	184 mm 7-1/4 in
UKPX12+HS2312X	PX12	UKX12	2-1/8 in	76.2 mm 3 in	286 mm 11-1/4 in	203 mm 8 in
UKPX12+H2312X	PX12	UKX12	55 mm	76.2 mm 3 in	286 mm 11-1/4 in	203 mm 8 in
UKP312+HS2312X	P312	UK312	2-1/8 in	85 mm 3-11/32 in	330 mm 13 in	250 mm 9-27/32 in
UKP312+H2312X	P312	UK312	55 mm	85 mm 3-11/32 in	330 mm 13 in	250 mm 9-27/32 in
UKP213+HE313X	P213	UK213	2-1/4 in	76.2 mm 3 in	265 mm 10-7/16 in	203 mm 8 in
UKP213+H313X	P213	UK213	60 mm	76.2 mm 3 in	265 mm 10-7/16 in	203 mm 8 in
UKP213+HS313X	P213	UK213	2-3/8 in	76.2 mm 3 in	265 mm 10-7/16 in	203 mm 8 in
UKPX13+HE2313X	PX13	UKX13	2-1/4 in	76.2 mm 3 in	286 mm 11-1/4 in	203 mm 8 in
UKPX13+H2313X	PX13	UKX13	60 mm	76.2 mm 3 in	286 mm 11-1/4 in	203 mm 8 in
UKPX13+HS2313X	PX13	UKX13	2-3/8 in	76.2 mm 3 in	286 mm 11-1/4 in	203 mm 8 in

　　如需要同等規(guī)格其它品牌軸承：日本NSK帶座軸承，日本ASAHI帶座軸承，日本NTN帶座軸承；可以聯(lián)系我司工作人員咨詢，電話：0512-66505543 0512-87666709。

帶座外球面軸承類型介紹

　　帶座外球面球軸承由兩面帶密封的外球面球軸承和鑄造的（或鋼板沖壓的）軸承座組成。外球面球軸承的內部結構與深溝球軸承相同，但此種軸承的內圈寬于外圈.外圈具有截球形外表面，與軸承座的凹球面相配能自動調心。通常此種軸承的內孔與軸之間有間隙，用頂絲，偏心套或緊定套將軸承內圈固定在軸上，并隨軸一起轉動。帶座軸承結構緊湊，裝卸方便，密封完善，適用于簡單支承，常用于采礦.冶金.農業(yè).化工.紡織.印染.輸送機械等。
