FYH軸承F座:UCF202、UCF203、UCF204、UCF205、UCFX05、UCF305、UCF206、UCFX06、UCF306、UCF207、UCFX07、UCF307、UCF208

上一個： FYH方形帶座軸承:UKF205、UKFX05、UKF305、UKF206、UKFX06、UKF306、UKF207、UKFX07、UKF307、UKF208、 UKFX08、UKF308尺寸參數表

下一個： FYH帶座軸承:UKP205、UKPX05、UKP305、UKP206、UKPX06、UKP306、UKP207、UKPX07、UKP307、UKP208、 UKPX08、UKP308、UKP209

產品詳情

產品評論(0)

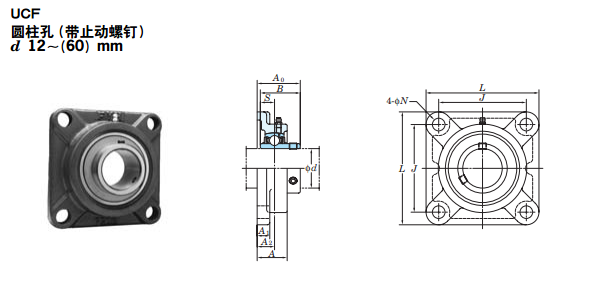

組件型號	軸承座型號	軸承公稱型號	軸徑	L 尺寸	J 尺寸	軸承座固定螺栓
UCF201	F204	UC201	12 mm	86 mm 3-3/8 in	64 mm 2-33/64 in	10 mm 3/8 in
UCF201-8	F204	UC201-8	1/2 in	86 mm 3-3/8 in	64 mm 2-33/64 in	10 mm 3/8 in
UCF202	F204	UC202	15 mm	86 mm 3-3/8 in	64 mm 2-33/64 in	10 mm 3/8 in
UCF202-10	F204	UC202-10	5/8 in	86 mm 3-3/8 in	64 mm 2-33/64 in	10 mm 3/8 in
UCF203	F204	UC203	17 mm	86 mm 3-3/8 in	64 mm 2-33/64 in	10 mm 3/8 in
UCF204-12	F204	UC204-12	3/4 in	86 mm 3-3/8 in	64 mm 2-33/64 in	10 mm 3/8 in
UCF204	F204	UC204	20 mm	86 mm 3-3/8 in	64 mm 2-33/64 in	10 mm 3/8 in
UCF205-14	F205	UC205-14	7/8 in	95 mm 3-3/4 in	70 mm 2-3/4 in	10 mm 3/8 in
UCF205-15	F205	UC205-15	15/16 in	95 mm 3-3/4 in	70 mm 2-3/4 in	10 mm 3/8 in
UCF205	F205	UC205	25 mm	95 mm 3-3/4 in	70 mm 2-3/4 in	10 mm 3/8 in
UCF205-16	F205	UC205-16	1 in	95 mm 3-3/4 in	70 mm 2-3/4 in	10 mm 3/8 in
UCFX05	FX05	UCX05	25 mm	108 mm 4-1/4 in	83 mm 3-17/64 in	10 mm 3/8 in
UCFX05-16	FX05	UCX05-16	1 in	108 mm 4-1/4 in	83 mm 3-17/64 in	10 mm 3/8 in
UCF305	F305	UC305	25 mm	110 mm 4-11/32 in	80 mm 3-5/32 in	14 mm 1/2 in
UCF305-16	F305	UC305-16	1 in	110 mm 4-11/32 in	80 mm 3-5/32 in	14 mm 1/2 in
UCF206-18	F206	UC206-18	1-1/8 in	108 mm 4-1/4 in	83 mm 3-17/64 in	10 mm 3/8 in
UCF206	F206	UC206	30 mm	108 mm 4-1/4 in	83 mm 3-17/64 in	10 mm 3/8 in
UCF206-19	F206	UC206-19	1-3/16 in	108 mm 4-1/4 in	83 mm 3-17/64 in	10 mm 3/8 in
UCF206-20	F206	UC206-20	1-1/4 in	108 mm 4-1/4 in	83 mm 3-17/64 in	10 mm 3/8 in
UCFX06	FX06	UCX06	30 mm	117 mm 4-19/32 in	92 mm 3-5/8 in	14 mm 1/2 in

組件型號	軸承座型號	軸承公稱型號	軸徑	L 尺寸	J 尺寸	軸承座固定螺栓
UCFX06-19	FX06	UCX06-19	1-3/16 in	117 mm 4-19/32 in	92 mm 3-5/8 in	14 mm 1/2 in
UCFX06-20	FX06	UCX06-20	1-1/4 in	117 mm 4-19/32 in	92 mm 3-5/8 in	14 mm 1/2 in
UCF306	F306	UC306	30 mm	125 mm 4-29/32 in	95 mm 3-47/64 in	14 mm 1/2 in
UCF207-20	F207	UC207-20	1-1/4 in	117 mm 4-19/32 in	92 mm 3-5/8 in	12 mm 7/16 in
UCF207-21	F207	UC207-21	1-5/16 in	117 mm 4-19/32 in	92 mm 3-5/8 in	12 mm 7/16 in
UCF207-22	F207	UC207-22	1-3/8 in	117 mm 4-19/32 in	92 mm 3-5/8 in	12 mm 7/16 in
UCF207	F207	UC207	35 mm	117 mm 4-19/32 in	92 mm 3-5/8 in	12 mm 7/16 in
UCF207-23	F207	UC207-23	1-7/16 in	117 mm 4-19/32 in	92 mm 3-5/8 in	12 mm 7/16 in
UCFX07-22	FX07	UCX07-22	1-3/8 in	130 mm 5-1/8 in	102 mm 4-1/64 in	14 mm 1/2 in
UCFX07	FX07	UCX07	35 mm	130 mm 5-1/8 in	102 mm 4-1/64 in	14 mm 1/2 in
UCFX07-23	FX07	UCX07-23	1-7/16 in	130 mm 5-1/8 in	102 mm 4-1/64 in	14 mm 1/2 in
UCF307	F307	UC307	35 mm	135 mm 5-5/16 in	100 mm 3-15/16 in	16 mm 5/8 in
UCF208-24	F208	UC208-24	1-1/2 in	130 mm 5-1/8 in	102 mm 4-1/64 in	14 mm 1/2 in
UCF208-25	F208	UC208-25	1-9/16 in	130 mm 5-1/8 in	102 mm 4-1/64 in	14 mm 1/2 in
UCF208	F208	UC208	40 mm	130 mm 5-1/8 in	102 mm 4-1/64 in	14 mm 1/2 in
UCFX08-24	FX08	UCX08-24	1-1/2 in	137 mm 5-13/32 in	105 mm 4-9/64 in	16 mm 5/8 in
UCFX08	FX08	UCX08	40 mm	137 mm 5-13/32 in	105 mm 4-9/64 in	16 mm 5/8 in
UCF308-24	F308	UC308-24	1-1/2 in	150 mm 5-29/32 in	112 mm 4-13/32 in	16 mm 5/8 in
UCF308	F308	UC308	40 mm	150 mm 5-29/32 in	112 mm 4-13/32 in	16 mm 5/8 in
UCF209-26	F209	UC209-26	1-5/8 in	137 mm 5-13/32 in	105 mm 4-9/64 in	14 mm 1/2 in

組件型號	軸承座型號	軸承公稱型號	軸徑	L 尺寸	J 尺寸	軸承座固定螺栓
UCF209-27	F209	UC209-27	1-11/16 in	137 mm 5-13/32 in	105 mm 4-9/64 in	14 mm 1/2 in
UCF209-28	F209	UC209-28	1-3/4 in	137 mm 5-13/32 in	105 mm 4-9/64 in	14 mm 1/2 in
UCF209	F209	UC209	45 mm	137 mm 5-13/32 in	105 mm 4-9/64 in	14 mm 1/2 in
UCFX09-28	FX09	UCX09-28	1-3/4 in	143 mm 5-5/8 in	111 mm 4-3/8 in	16 mm 5/8 in
UCFX09	FX09	UCX09	45 mm	143 mm 5-5/8 in	111 mm 4-3/8 in	16 mm 5/8 in
UCF309-28	F309	UC309-28	1-3/4 in	160 mm 6-5/16 in	125 mm 4-59/64 in	16 mm 5/8 in
UCF309	F309	UC309	45 mm	160 mm 6-5/16 in	125 mm 4-59/64 in	16 mm 5/8 in
UCF210-30	F210	UC210-30	1-7/8 in	143 mm 5-5/8 in	111 mm 4-3/8 in	14 mm 1/2 in
UCF210-31	F210	UC210-31	1-15/16 in	143 mm 5-5/8 in	111 mm 4-3/8 in	14 mm 1/2 in
UCF210	F210	UC210	50 mm	143 mm 5-5/8 in	111 mm 4-3/8 in	14 mm 1/2 in
UCF210-32	F210	UC210-32	2 in	143 mm 5-5/8 in	111 mm 4-3/8 in	14 mm 1/2 in
UCFX10-31	FX10	UCX10-31	1-15/16 in	162 mm 6-3/8 in	130 mm 5-1/8 in	16 mm 5/8 in
UCFX10	FX10	UCX10	50 mm	162 mm 6-3/8 in	130 mm 5-1/8 in	16 mm 5/8 in
UCFX10-32	FX10	UCX10-32	2 in	162 mm 6-3/8 in	130 mm 5-1/8 in	16 mm 5/8 in
UCF310	F310	UC310	50 mm	175 mm 6-7/8 in	132 mm 5-13/64 in	20 mm 3/4 in
UCF211-32	F211	UC211-32	2 in	162 mm 6-3/8 in	130 mm 5-1/8 in	16 mm 5/8 in
UCF211-34	F211	UC211-34	2-1/8 in	162 mm 6-3/8 in	130 mm 5-1/8 in	16 mm 5/8 in
UCF211	F211	UC211	55 mm	162 mm 6-3/8 in	130 mm 5-1/8 in	16 mm 5/8 in
UCF211-35	F211	UC211-35	2-3/16 in	162 mm 6-3/8 in	130 mm 5-1/8 in	16 mm 5/8 in
UCFX11	FX11	UCX11	55 mm	175 mm 6-7/8 in	143 mm 5-5/8 in	16 mm 5/8 in

組件型號	軸承座型號	軸承公稱型號	軸徑	L 尺寸	J 尺寸	軸承座固定螺栓
UCFX11-35	FX11	UCX11-35	2-3/16 in	175 mm 6-7/8 in	143 mm 5-5/8 in	16 mm 5/8 in
UCFX11-36	FX11	UCX11-36	2-1/4 in	175 mm 6-7/8 in	143 mm 5-5/8 in	16 mm 5/8 in
UCF311-32	F311	UC311-32	2 in	185 mm 7-9/32 in	140 mm 5-33/64 in	20 mm 3/4 in
UCF311	F311	UC311	55 mm	185 mm 7-9/32 in	140 mm 5-33/64 in	20 mm 3/4 in
UCF311-35	F311	UC311-35	2-3/16 in	185 mm 7-9/32 in	140 mm 5-33/64 in	20 mm 3/4 in
UCF212-36	F212	UC212-36	2-1/4 in	175 mm 6-7/8 in	143 mm 5-5/8 in	16 mm 5/8 in
UCF212	F212	UC212	60 mm	175 mm 6-7/8 in	143 mm 5-5/8 in	16 mm 5/8 in
UCF212-38	F212	UC212-38	2-3/8 in	175 mm 6-7/8 in	143 mm 5-5/8 in	16 mm 5/8 in
UCF212-39	F212	UC212-39	2-7/16 in	175 mm 6-7/8 in	143 mm 5-5/8 in	16 mm 5/8 in
UCFX12	FX12	UCX12	60 mm	187 mm 7-3/8 in	149 mm 5-55/64 in	16 mm 5/8 in
UCFX12-39	FX12	UCX12-39	2-7/16 in	187 mm 7-3/8 in	149 mm 5-55/64 in	16 mm 5/8 in
UCF312	F312	UC312	60 mm	195 mm 7-11/16 in	150 mm 5-29/32 in	20 mm 3/4 in
UCF312-39	F312	UC312-39	2-7/16 in	195 mm 7-11/16 in	150 mm 5-29/32 in	20 mm 3/4 in
UCF213-40	F213	UC213-40	2-1/2 in	187 mm 7-3/8 in	149 mm 5-55/64 in	16 mm 5/8 in
UCF213	F213	UC213	65 mm	187 mm 7-3/8 in	149 mm 5-55/64 in	16 mm 5/8 in
UCFX13-40	FX13	UCX13-40	2-1/2 in	187 mm 7-3/8 in	149 mm 5-55/64 in	16 mm 5/8 in
UCFX13	FX13	UCX13	65 mm	187 mm 7-3/8 in	149 mm 5-55/64 in	16 mm 5/8 in
UCF313-40	F313	UC313-40	2-1/2 in	208 mm 8-3/16 in	166 mm 6-17/32 in	20 mm 3/4 in
UCF313	F313	UC313	65 mm	208 mm 8-3/16 in	166 mm 6-17/32 in	20 mm 3/4 in
UCF214-44	F214	UC214-44	2-3/4 in	193 mm 7-19/32 in	152 mm 5-63/64 in	16 mm 5/8 in

　　如需要同等規格其它品牌軸承：日本NSK帶座軸承，日本ASAHI帶座軸承，日本NTN帶座軸承；可以聯系我司工作人員咨詢，電話：0512-66505543 0512-87666709。

帶座外球面軸承類型介紹

　　帶座外球面球軸承由兩面帶密封的外球面球軸承和鑄造的（或鋼板沖壓的）軸承座組成。外球面球軸承的內部結構與深溝球軸承相同，但此種軸承的內圈寬于外圈.外圈具有截球形外表面，與軸承座的凹球面相配能自動調心。通常此種軸承的內孔與軸之間有間隙，用頂絲，偏心套或緊定套將軸承內圈固定在軸上，并隨軸一起轉動。帶座軸承結構緊湊，裝卸方便，密封完善，適用于簡單支承，常用于采礦.冶金.農業.化工.紡織.印染.輸送機械等。
